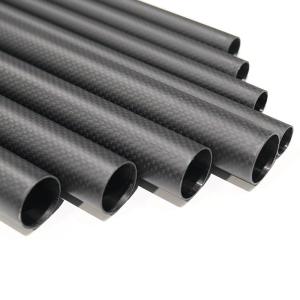

Durable & High Quality Carbon High Precision Tube Power Tube Ø 100mm x ø 90mm
Our Carbon Fiber Tubes - for extreme challenges and maximum resilience! We developed the Carbon Fiber Tubes for particularly demanding applications when extreme forces have to be transmitted and maximum precision is still required. The Carbon Tubes are our strongest tubes, manufactured to our precision tube standard. Due to their precision cut, these tubes fit together perfectly and can therefore be optimally extended. The carbon fiber tube thus offers the perfect balance between maximum power transmission and low weight, without compromise.
The tubes have a particularly attractive carbon design finish in order to meet the highest visual demands. Both the inner layers and the outer layers are made of twill carbon fabric. High-strength carbon fibers are used as core layers in the longitudinal direction in order to achieve maximum flexural strength.
With the precisely matched diameters, the LINJIN Tube series is the ideal complement to the Telescopic Tube series. Due to their identical surface finish with the same design, these tubes can also be perfectly combined visually.
Carbon Fiber Tubes – uncompromisingly powerful.
There are 3 different surfaces to choose from:
• Winding surface (grip surface with good haptics - raw, unprocessed)
• Ground (precision surface ground, smooth, matt)
• Painted (high gloss coating, these tubes are also ground to precision)
Features/Benefits
- Balanced Layup
- High crush/bend strength and stiffness
- Easy machinability
- Decorative Aesthetics
- Hardware easily mounts to ID and OD
Uses Include
- Aerospace Spars & Beams
- UAV Housing Components
- Frames & Supports
- Structural Components
- Interior Design
- Automation Equipment
- Recreational Equipment
| Name | Carbon Fiber Round Tube/Square Carbon Fiber Tube |
| Feature | 1. Made of high modulus 100% carbon fiber imported from Japan with epoxy resin 2. Great replacement for the low-grade aluminum wing tubes 3. Weights only 1/5 of steel and 5 times stronger than steel
4. Low Coefficient of Thermal Expansion, High-Temperature Resistance
5. Good Tenacity, Good Toughness, Low Coefficiency Of Thermal Expansion |
| Specification | Pattern | Twill, Plain |
| Surface | Glossy, Matte |
| Line | 3K Or UD |
| Color | Black, Gold, Silver, Red, Bue, Gree(Or With Color Silk) |
| Material | Japan Toray Carbon Fiber Fabric+Resin |
| Carbon Content | 68% |
| Size | Type | ID | Wall thickness | Length |
| Round Tube | 6-60 mm | 0.5,0.75,1/1.5,2,3,4 mm | 1000,1200,1500 mm |
| Square Tube | 8-38 mm | 2,3 mm | 500,600,780 mm |
| Application | 1. Aerospace, Helicopters Model Drone, UAV, FPV, RC Model Parts
2. Manufacture Fixtures And Tooling, Industrial Automation
3. Sports Equipment, Musical Instruments, Medical Device
4. Building Construction Repair And Strengthening
5. Car Interior Decoration Parts, Art Products 6. Others |
| Packing | 3 layers of protective packaging: plastic film, bubble wrap, carton (Normal size: 0.1 * 0.1 * 1 meter(width*height*length) |
