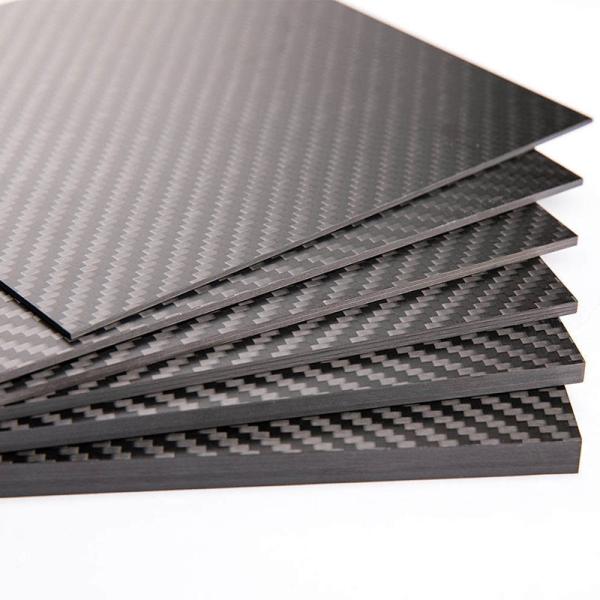

High Strength OEM 100% 3K Carbon Fiber Plain Weave Glossy Matte Carbon Fiber Plate
A "100% 3K twill matte carbon fiber plate" refers to a specific type of carbon fiber composite plate with particular characteristics and properties. Let's break down what each of these terms means:
- 100%: This indicates that the plate is made entirely from carbon fiber, specifically using 100% carbon fiber fabric or material. In other words, there are no other fibers or materials mixed in; it's a pure carbon fiber plate.
- 3K: This refers to the carbon fiber weave pattern used in the plate. The "3K" weave pattern is one of the most common carbon fiber weave patterns. It consists of 3,000 carbon fibers bundled together in each strand, forming the weave. This pattern provides a balanced combination of strength and aesthetics.
- Twill: The term "twill" indicates the specific weave pattern used in the plate. Twill weave is a diagonal pattern that creates a distinct, repeating V-shaped pattern on the carbon fiber surface. It is known for its visual appeal and is often chosen for its aesthetic qualities.
- Matte: "Matte" refers to the surface finish of the carbon fiber plate. A matte finish is non-reflective and has a flat appearance, providing a subdued and elegant look. This finish is often chosen for applications where a glossy or shiny appearance is not desired.
In summary, a "100% 3K twill matte carbon fiber plate" is a flat, rigid composite plate made entirely from pure carbon fiber, featuring a twill weave pattern and a matte, non-reflective surface finish. These plates are chosen for applications where a high-strength, lightweight material with a specific aesthetic quality is required. They are commonly used in aerospace, automotive, sports equipment, and other industries where the combination of strength, weight savings, and a particular appearance is important.
3K real carbon fiber panels are an excellent solution when looking for a high-performance panel or when a thinner sheet is desired. Routes and cuts easily, with a lowest-possible resin content for this production method. Flawless matte (low-medium gloss) 3K twill finish on both sides.
Single-Sided Carbon Fiber Plate Specification:
| Item Name | Thickness | Length & Width | Weave | Finish | SKU Code | N.W. | Regular MOQ | 1st Order MOQ | Ship From |
| 05005060, Full CF Plate, Plain Weave,6K, Matte, TT | 5 | 500mm*600mm | Twill | Glossy | TG05005060PLTFCF3KTT | 2.48 | 5 | 1 | China factory |
| 04005060, Full CF Plate, Plain Weave,5K, Matte, TT | 4 | 500mm*600mm | Twill | Glossy | TG04005060PLTFCF3KTT | 1.94 | 5 | 1 | China factory |
| 03005060, Full CF Plate, Plain Weave,4K, Matte, TT | 3 | 500mm*600mm | Twill | Glossy | TG03005060PLTFCF3KTT | 1.46 | 5 | 1 | China factory |
| 02505060, Full CF Plate, Plain Weave,3K, Matte, TT | 2.5 | 500mm*600mm | Twill | Glossy | TG02505060PLTFCF3KTT | 0 | 5 | 1 | China factory |
| 02005060, Full CF Plate, Plain Weave,3K, Matte, TT | 2 | 500mm*600mm | Twill | Glossy | TG02005060PLTFCF3KTT | 0.96 | 5 | 1 | China factory |
| 01505060, Full CF Plate, Plain Weave,3K, Matte, TT | 1.5 | 500mm*600mm | Twill | Glossy | TG01505060PLTFCF3KTT | 0.73 | 5 | 1 | China factory |
| 01005060, Full CF Plate, Plain Weave,3K, Matte, TT | 1 | 500mm*600mm | Twill | Glossy | TG01005060PLTFCF3KTT | 0.53 | 5 | 1 | China factory |
FAQ:
1. What kind of finish is available for carbon fiber sheets? Are carbon fiber sheets with a matt finish available?
At this moment only carbon fiber sheets with a gloss finish are available. We can supply a matt finish for larger wholesale orders.
2. Do you supply carbon fiber sheets of thickness customized to individual needs? And what accuracy can your company guarantee?
Our standard carbon fiber sheets are manufactured with accuracy up to ~ + 0.2mm, which means that a sheet 1.5mm thick may have a thickness within the range of 1.5-1.7mm. Upon request, we provide cutting of carbon fiber sheets to the required thickness with an accuracy of 0.05mm.
3. Do you supply unidirectional carbon fiber sheets or biaxial and triaxial carbon fiber sheets?
We supply carbon fiber sheets with 2/2 (twill) or 1/1 (plain) weave but upon request, we also supply unidirectional carbon fiber (UD) or biaxial and triaxial carbon fiber sheets.
4. Are carbon fiber sheets of the quasi-isotropic type available?
We supply carbon fiber sheets with layers oriented at 0/90 degrees, but upon request, we also supply carbon fiber sheets with layers oriented at 0/90/-45/+45 degrees namely quasi-isotropic carbon fiber sheets.
5. What is the thermal resistance of carbon fiber sheets?
Carbon fiber sheets offer thermal resistance of up to 70oC. Upon request, we also supply carbon fiber sheets with thermal resistance up to 150oC.
6. How can I cut carbon fiber sheets in my workshop?
The carbon fiber plates we make are easy to process. They do not flatten when milling on a CNC machine, and the edges are sharp and nice. The carbon plates we make can also be easily machined with household tools such as an angle grinder, drill, file, sandpaper, etc.
7. Can carbon fiber sheets be painted?
Actually, any further treatment depends on the intended use. All supplied carbon fiber sheets (and ones made from epoxy resin) offer resistance to UV. However in the case of long duration or repeated exposure to sunshine (UV radiation) it is recommended to apply a layer of clear top coat (e.g. Polyurethane and Acrylic based) on the outer side of the carbon fiber sheet to ensure total protection against UV radiation.
